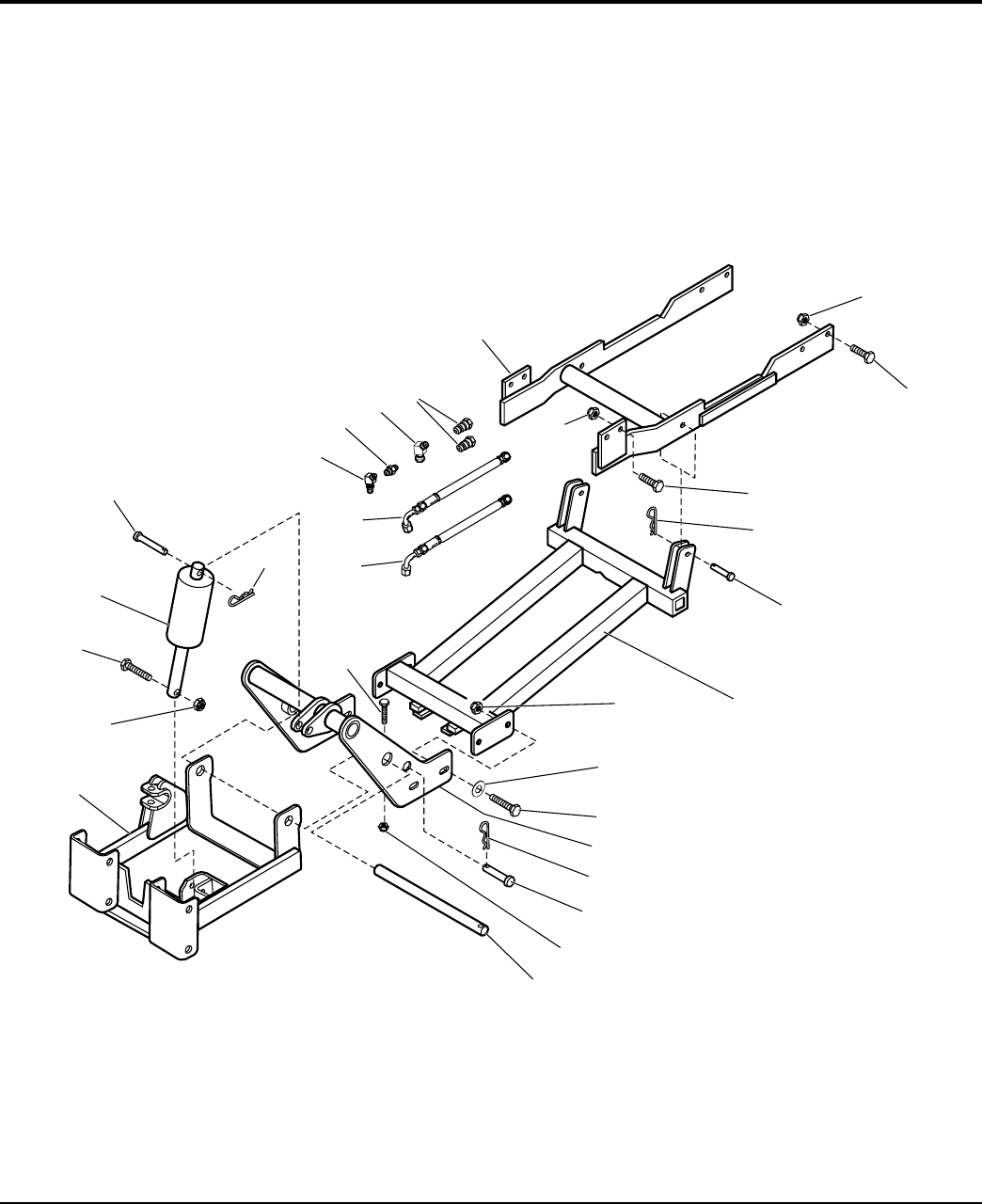

Frame Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

11

6

13

15

12

14

2

13

2

16

2

20

6

17

21

18

19

13

1

7

5

9

2

8

4

6

3

10

22

986338

The above parts group applies to the following Mfg. Nos.:

2003

1

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

1694395 - Frame

TP 400-3877-00-AT-SMA
